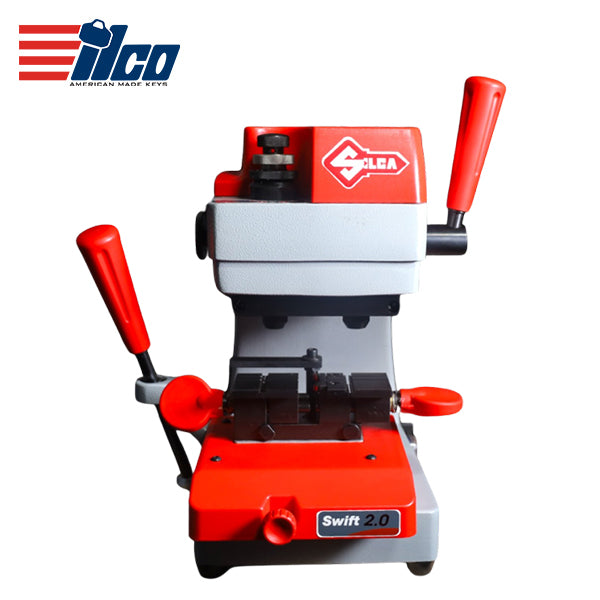

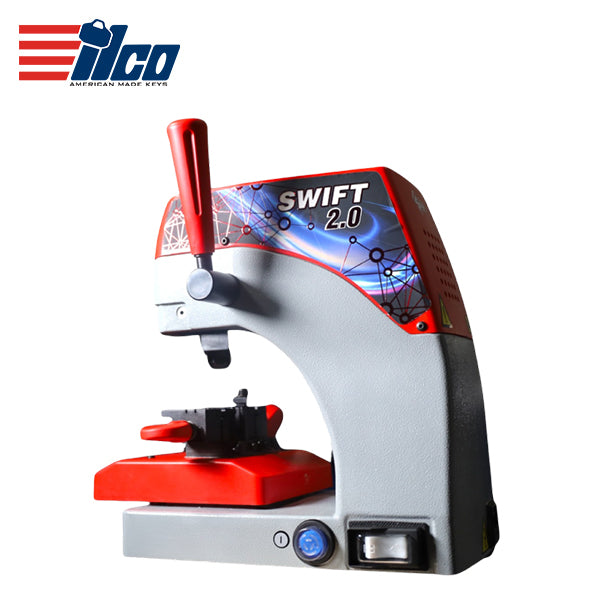

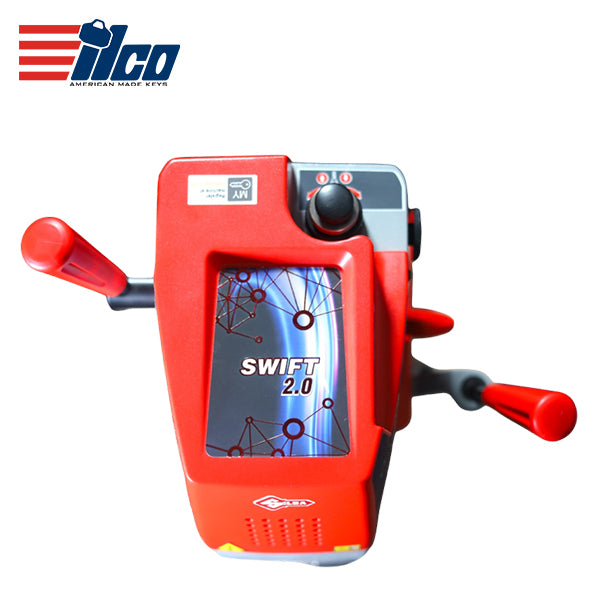

Based on the existing Swift Plus platform, the all-new Swift 2.0 introduces a fresh aesthetic appearance and an enhanced carriage design that enables smoother operation for users. Lightweight and compact, this model is ideal for mobile use or environments with limited counter space, making it the perfect entry-level mechanical key cutting machine for duplicating laser, dimple, and tubular keys.
Features
- Improved carriage design resulting in a better overall user experience during the duplication process.
- HSS TiN coated cutters for longevity.
- Easily replace cutter side jaws.
- Master safety switch with separate cutter motor switch.
- Built in accessory tray on top of hood.
- Quick calibration of Z-axis for laser keys using calibration bars.
- Spring loaded tracer point and nickel plated adjustment ring provides accurate calibration for dimple keys.
- Led lighting illuminates work area.
- Ergonomic grips.
- Safety shield.
- Ergonomically designed levers provide user comfort and control.
- Compact dimensions saves work space on counter or mobile use.
PN: D8A8871ZB
Technical Data
- Electricity supply:
- 220V-230V / 50-60Hz
- 110V-120V / 60Hz
- Maximum absorbed power:
- 220V-230V: 1 Amp 200 Watt
- 110V-120V: 1.3 Amp 200 Watt
- Motor: One-speed single phase
- Cutting tools: Super rapid steel HSS – Coated
- Tool speed: 50Hz: 6000 rpm (+/- 10%) – 60Hz: 6000 rpm (+/- 10%)
- Movements: on 3 axes through balls and guides
- Clamps: fixed
- Runs: X axis (lower): 24 mm – Y axis (upper): 50 mm – Z axis (vertical): 22 mm
- Dimensions : width: 260 mm depth: 285 mm height: 315 mm
- Weight: 13 Kg.
- Sound pressure: 76 dB(A)
